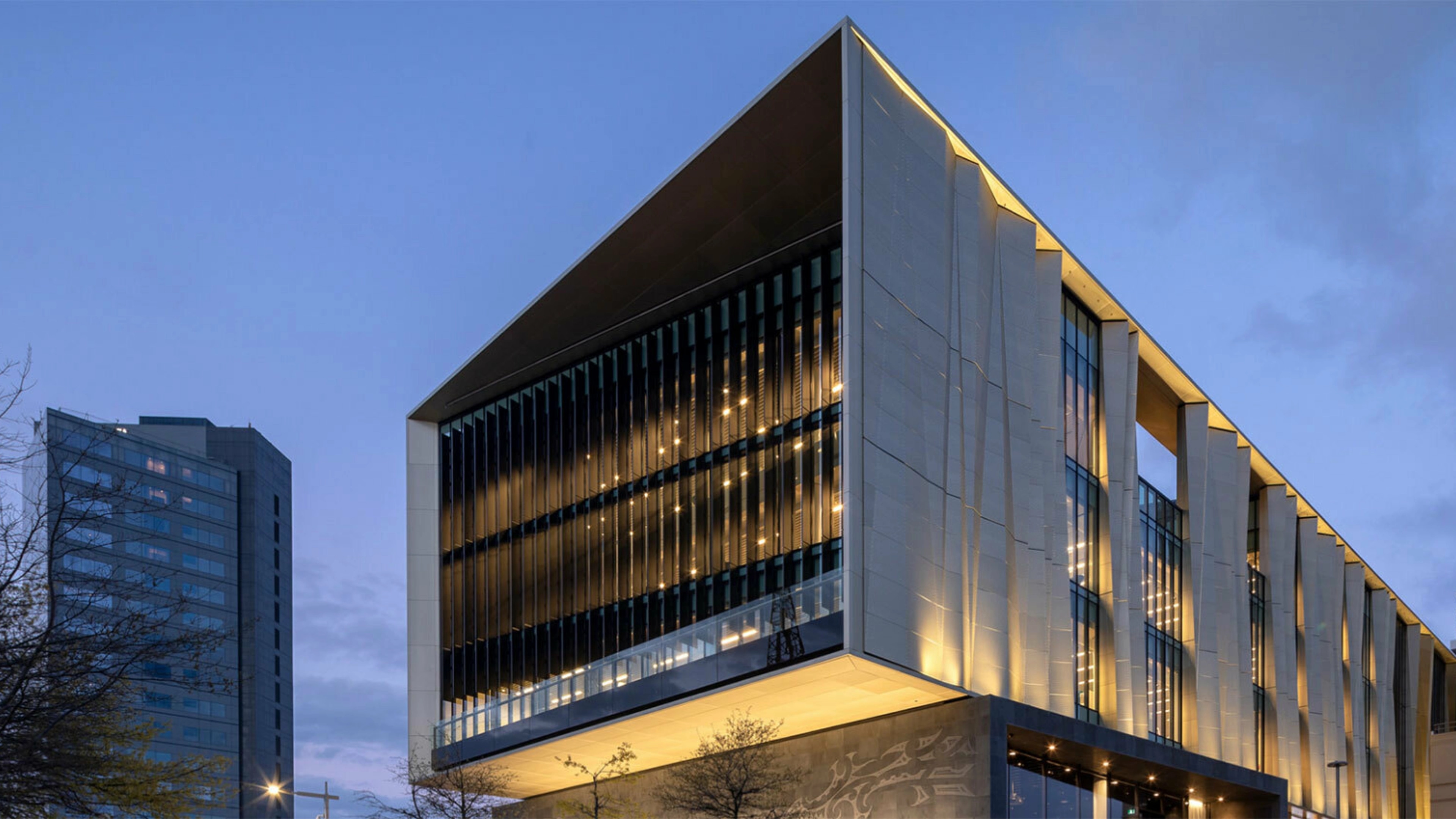

Tūranga - Christchurch's world-class library

Client	Christchurch City Council
Dates:	October 2016 - October 2018
Area:	9850m2 over five levels
Total value:	$92.7 million
Capacity:	60 staff at any one time + 2,600 visitors per day
Accreditation:	5 Green Star certification

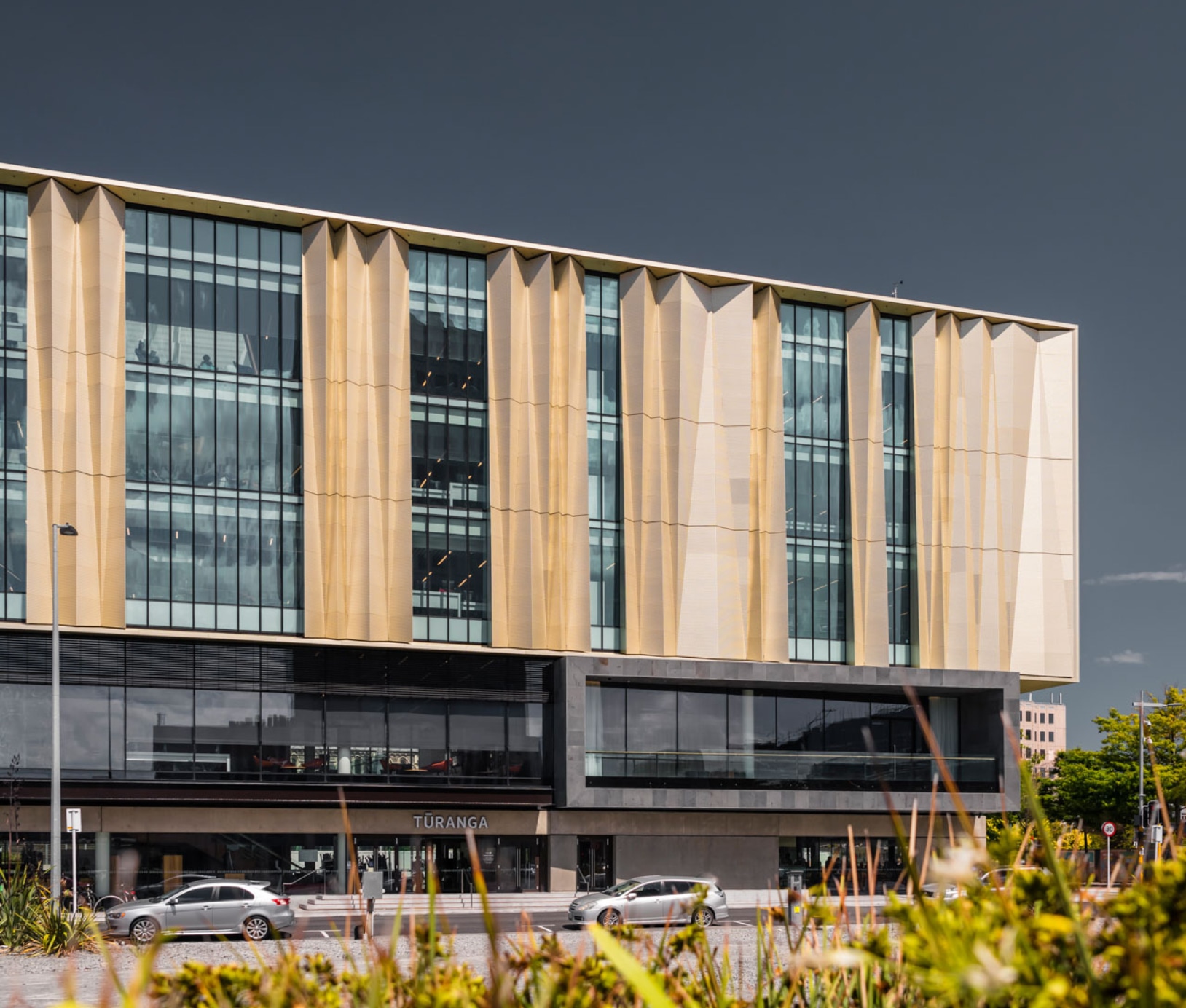

Building is wrapped in a high performance, low – E and argon filled double glazing reducing heat loss and summer heat gain.

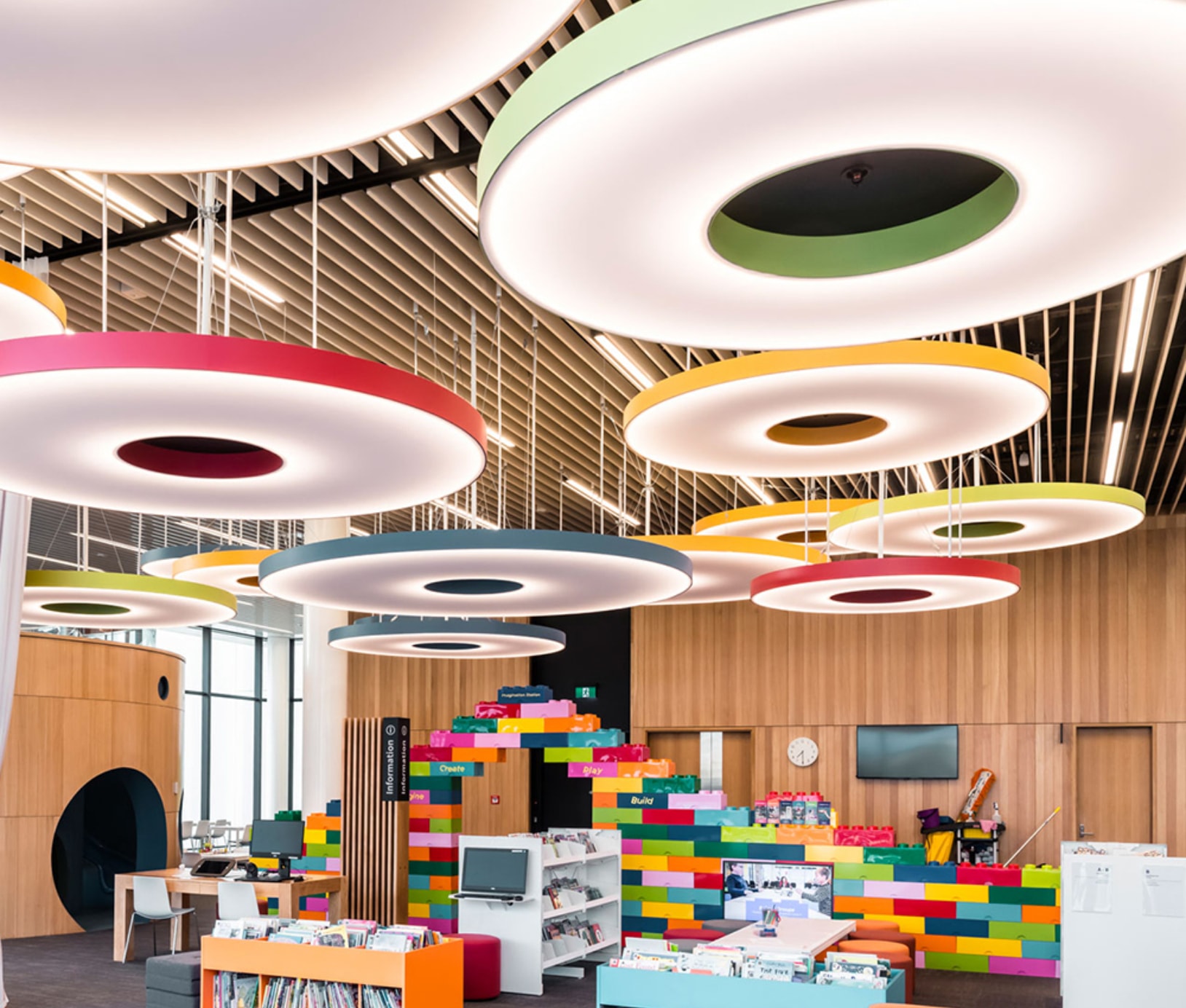

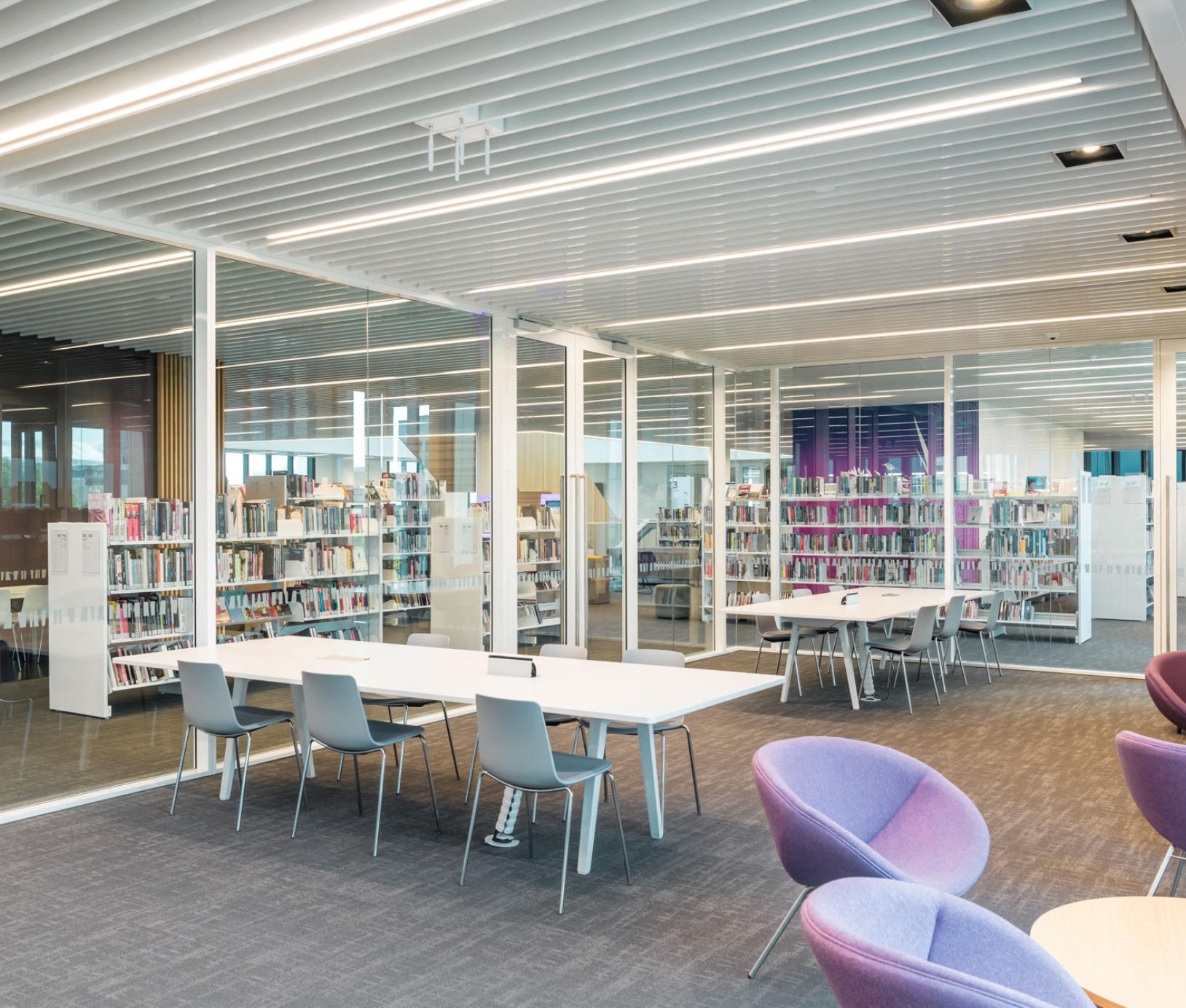

Lighting systems with extensive controls, daylight dimming and occupancy sensing.
Automatic external solar control blinds significantly reducing the need for summer cooling.
Water efficient sanitary fittings and fixtures.
Responsibly sourced timber.
During construction over 70% of building and demolition waste re-used or re-cycled.
Reduced car parking spaces.
Provision of end of trip cycling facilities for staff and cycle parking for visitors

Energy modelling showed that Tūranga would use 72% less energy and emit 72% fewer GHG emissions than a comparable building.
A water-sourced heat pump / chiller connected to artesian bores has an energy coefficient of 4.8 (480% efficient) compared with a typical air-source heat pump at 3.0 (300% efficient).
Electrical sub-metering and energy monitoring in operation.
Exhaust riser to reduce impact from equipment-related sources of internal pollutants on occupant health.
Zero ozone-depletion potential (ODP) refrigerants and insulants.
Low global-warming potential (GWP) refrigerants.
Reduced peak storm water flows.
Building has large dampeners to help absorb energy and prevent damage from earthquakes.
